Rocks generates kickstart files for compute nodes dynamically using a structure called the "kickstart graph". This graph is made from graph XML files and node XML files. In general, a node XML file contains a list of packages that should be installed on a host and commands to configure those packages. Graph XML files contain a description of "edges" that tie the node XML files together.
When a host asks for its configuration file from the frontend, a process on the frontend traverses the node XML files based on the definitions within the graph XML files. In addition, the graph XML files can enforce a relative order between the node XML files.
All software configuration commands are contained within node XML files.
Let's look at a real node XML (grub.xml from the
Base Roll):
<?xml version="1.0" standalone="no"?> <kickstart> <description> Boot loader support (GRand Unified Bootloader) </description> <package>grub</package> <post> <!-- take out the splashscreen --> <file name="/tmp/grub.conf" expr="grep -v splashimage /boot/grub/grub.conf"/> mv /tmp/grub.conf /boot/grub/grub.conf <!-- Preserve the original grub.conf --> cp /boot/grub/grub.conf /boot/grub/grub-orig.conf </post> </kickstart> |
We see that the above node XML file will install the "grub" package
(<package>grub</package>), and in the
"post" configuration step during a kickstart installation, it will
modify the configuration file (/boot/grub/grub.conf).
 | During a kickstart installation, all the packages from all the node XML files are installed first, then all the "post" sections are executed. That is, when you write a post section, you are guaranteed that all the software packages have been installed. |
For a complete definition of the node XML file syntax, see Node XML Tags.
For our Valgrind example, we will modify the node XML file that was already created for us:
# cd /export/src/roll/valgrind/nodes # mv valgrind.xml valgrind-base.xml |
| A node XML file naming convention in Rocks is to begin the name all the node XML files with the name of the roll they are associated with. For example, all node XML files in the SGE roll begin with "sge-". Another naming convention is to add the name "client", "server" or "base" to the name of the node XML file based on which appliance type the node XML file will be applied to. For example, if the node XML file is intended to configure only backend appliances (e.g., compute nodes or tile nodes), then we'd name our node XML file "valgrind-client.xml". If the node XML file is intended to configure only frontend appliances, then we'd name our node XML file "valgrind-server.xml". And if the node XML file is for all appliance types, we'd name it "valgrind-base.xml". |
When you edit "valgrind-base.xml", you'll see:
<?xml version="1.0" standalone="no"?>
<kickstart>
<description>
Your valgrind roll description here
</description>
<copyright>
Rocks(r)
www.rocksclusters.org
version 5.5 (Mamba)
version 6.0 (Mamba)
Copyright (c) 2000 - 2012 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice unmodified and in its entirety, this list of conditions and the
following disclaimer in the documentation and/or other materials provided
with the distribution.
3. All advertising and press materials, printed or electronic, mentioning
features or use of this software must display the following acknowledgement:
"This product includes software developed by the Rocks(r)
Cluster Group at the San Diego Supercomputer Center at the
University of California, San Diego and its contributors."
4. Except as permitted for the purposes of acknowledgment in paragraph 3,
neither the name or logo of this software nor the names of its
authors may be used to endorse or promote products derived from this
software without specific prior written permission. The name of the
software includes the following terms, and any derivatives thereof:
"Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of
the associated name, interested parties should contact Technology
Transfer & Intellectual Property Services, University of California,
San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910,
Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
</copyright>
<changelog>
$Log: internals.sgml,v $
Revision 1.9 2012/05/06 05:48:40 phil
Copyright Storm for Mamba
Revision 1.8 2011/07/23 02:30:44 phil
Viper Copyright
Revision 1.7 2011/02/08 21:59:41 bruno
edits
Revision 1.6 2011/02/07 23:30:26 bruno
first pass at build section
Revision 1.5 2011/02/07 20:48:46 bruno
the first draft of 'roll internals' is done.
Revision 1.4 2011/02/05 01:04:49 bruno
checkpoint
</changelog>
<package>valgrind</package>
<package>roll-valgrind-usersguide</package>
</kickstart> |
Notice above that the "valgrind" and "roll-valgrind-usersguide" RPMs
are specified in <package> tags which means those
RPMs will be installed by the Red Hat installer.
Now let's add a <post> section to it:
<?xml version="1.0" standalone="no"?>
<kickstart>
<description>
Your valgrind roll description here
</description>
<copyright>
Rocks(r)
www.rocksclusters.org
version 5.5 (Mamba)
version 6.0 (Mamba)
Copyright (c) 2000 - 2012 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice unmodified and in its entirety, this list of conditions and the
following disclaimer in the documentation and/or other materials provided
with the distribution.
3. All advertising and press materials, printed or electronic, mentioning
features or use of this software must display the following acknowledgement:
"This product includes software developed by the Rocks(r)
Cluster Group at the San Diego Supercomputer Center at the
University of California, San Diego and its contributors."
4. Except as permitted for the purposes of acknowledgment in paragraph 3,
neither the name or logo of this software nor the names of its
authors may be used to endorse or promote products derived from this
software without specific prior written permission. The name of the
software includes the following terms, and any derivatives thereof:
"Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of
the associated name, interested parties should contact Technology
Transfer & Intellectual Property Services, University of California,
San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910,
Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
</copyright>
<changelog>
$Log: internals.sgml,v $
Revision 1.9 2012/05/06 05:48:40 phil
Copyright Storm for Mamba
Revision 1.8 2011/07/23 02:30:44 phil
Viper Copyright
Revision 1.7 2011/02/08 21:59:41 bruno
edits
Revision 1.6 2011/02/07 23:30:26 bruno
first pass at build section
Revision 1.5 2011/02/07 20:48:46 bruno
the first draft of 'roll internals' is done.
Revision 1.4 2011/02/05 01:04:49 bruno
checkpoint
</changelog>
<package>valgrind</package>
<package>roll-valgrind-usersguide</package>
<post>
<file name="/etc/motd" mode="append">
This node has "valgrind" configured for it.
</file>
</post>
</kickstart>
|
This post section will append a small note to an installing host's
/etc/motd.
Now that we have our first node XML file, we need to "splice" it into the Rocks kickstart graph -- which is the subject of the next section.
Every roll has node XML files and a graph XML file. Node XML files describe what packages should be installed and how those packages should be configured. A graph XML file describes how all the node XML files are "connected", that is, a graph XML file describes the "edges" between nodes.

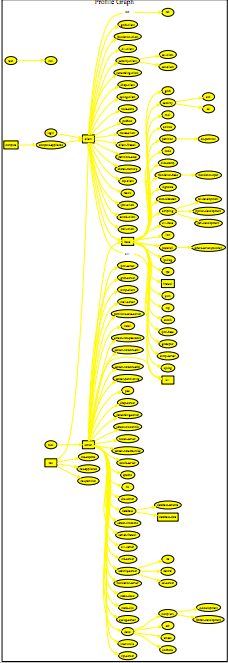

Below is a picture of how the Base Roll's nodes are connected together via its graph XML file:
Let's "splice" our "valgrind-base.xml" node XML file into the Rocks kickstart graph. We'll look at the default graph file that was automatically created for us:
# cd /export/src/roll/valgrind/graphs/default |
Now edit the file "valgrind.xml":
<?xml version="1.0" standalone="no"?>
<graph>
<description>
The valgrind Roll
</description>
<copyright>
Rocks(r)
www.rocksclusters.org
version 5.5 (Mamba)
version 6.0 (Mamba)
Copyright (c) 2000 - 2012 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice unmodified and in its entirety, this list of conditions and the
following disclaimer in the documentation and/or other materials provided
with the distribution.
3. All advertising and press materials, printed or electronic, mentioning
features or use of this software must display the following acknowledgement:
"This product includes software developed by the Rocks(r)
Cluster Group at the San Diego Supercomputer Center at the
University of California, San Diego and its contributors."
4. Except as permitted for the purposes of acknowledgment in paragraph 3,
neither the name or logo of this software nor the names of its
authors may be used to endorse or promote products derived from this
software without specific prior written permission. The name of the
software includes the following terms, and any derivatives thereof:
"Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of
the associated name, interested parties should contact Technology
Transfer & Intellectual Property Services, University of California,
San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910,
Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
</copyright>
<changelog>
$Log: internals.sgml,v $
Revision 1.9 2012/05/06 05:48:40 phil
Copyright Storm for Mamba
Revision 1.8 2011/07/23 02:30:44 phil
Viper Copyright
Revision 1.7 2011/02/08 21:59:41 bruno
edits
Revision 1.6 2011/02/07 23:30:26 bruno
first pass at build section
Revision 1.5 2011/02/07 20:48:46 bruno
the first draft of 'roll internals' is done.
Revision 1.4 2011/02/05 01:04:49 bruno
checkpoint
</changelog>
<!-- add edges here -->
</graph> |

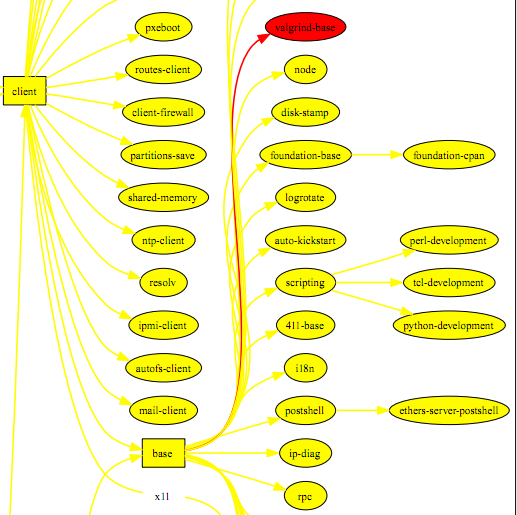

We will add an "edge". Since we want our "valgrind-base.xml" node XML file to be installed on all nodes, we'll make an edge from the "base" node XML file to "valgrind-base":
<?xml version="1.0" standalone="no"?>
<graph>
<description>
The valgrind Roll
</description>
<copyright>
Rocks(r)
www.rocksclusters.org
version 5.5 (Mamba)
version 6.0 (Mamba)
Copyright (c) 2000 - 2012 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice unmodified and in its entirety, this list of conditions and the
following disclaimer in the documentation and/or other materials provided
with the distribution.
3. All advertising and press materials, printed or electronic, mentioning
features or use of this software must display the following acknowledgement:
"This product includes software developed by the Rocks(r)
Cluster Group at the San Diego Supercomputer Center at the
University of California, San Diego and its contributors."
4. Except as permitted for the purposes of acknowledgment in paragraph 3,
neither the name or logo of this software nor the names of its
authors may be used to endorse or promote products derived from this
software without specific prior written permission. The name of the
software includes the following terms, and any derivatives thereof:
"Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of
the associated name, interested parties should contact Technology
Transfer & Intellectual Property Services, University of California,
San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910,
Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
</copyright>
<changelog>
$Log: internals.sgml,v $
Revision 1.9 2012/05/06 05:48:40 phil
Copyright Storm for Mamba
Revision 1.8 2011/07/23 02:30:44 phil
Viper Copyright
Revision 1.7 2011/02/08 21:59:41 bruno
edits
Revision 1.6 2011/02/07 23:30:26 bruno
first pass at build section
Revision 1.5 2011/02/07 20:48:46 bruno
the first draft of 'roll internals' is done.
Revision 1.4 2011/02/05 01:04:49 bruno
checkpoint
</changelog>
<!-- add edges here -->
<edge from="base">
<to>valgrind-base</to>
</edge>
</graph> |
| Note that we don't add the ".xml" file extension in edge descriptions. |
Our node XML file has now been spliced into the Rocks kickstart graph. Note: the node XML file "base" is from the Base Roll.
In the picture below, we see how "valgrind-base.xml" has been spliced into the Rocks kickstart graph:
There are instances when we need to ensure that a post section in one
node XML file executes before (or after) a post section in another node XML
file.
We can accomplish this by specifying an
<order> tag in a graph XML
file.
To show how this is done, we'll create two new node XML files and then we'll
edit the graph XML file.
We will create two new node XML files where one file should be
applied to a frontend (named "valgrind-server.xml") and the other should be
applied to the backend appliances (named "valgrind-client.xml).
We'll add <package> and
<post> tags to both.
Here's the contents of "valgrind-client.xml":
<?xml version="1.0" standalone="no"?> <kickstart> <description> Valgrind client node XML file. This file should be applied to backend appliances (e.g., compute nodes and tile nodes). </description> <copyright> Rocks(r) www.rocksclusters.org version 5.5 (Mamba) version 6.0 (Mamba) Copyright (c) 2000 - 2012 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice unmodified and in its entirety, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising and press materials, printed or electronic, mentioning features or use of this software must display the following acknowledgement: "This product includes software developed by the Rocks(r) Cluster Group at the San Diego Supercomputer Center at the University of California, San Diego and its contributors." 4. Except as permitted for the purposes of acknowledgment in paragraph 3, neither the name or logo of this software nor the names of its authors may be used to endorse or promote products derived from this software without specific prior written permission. The name of the software includes the following terms, and any derivatives thereof: "Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of the associated name, interested parties should contact Technology Transfer & Intellectual Property Services, University of California, San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910, Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. </copyright> <changelog> $Log: internals.sgml,v $ Revision 1.9 2012/05/06 05:48:40 phil Copyright Storm for Mamba Revision 1.8 2011/07/23 02:30:44 phil Viper Copyright Revision 1.7 2011/02/08 21:59:41 bruno edits Revision 1.6 2011/02/07 23:30:26 bruno first pass at build section Revision 1.5 2011/02/07 20:48:46 bruno the first draft of 'roll internals' is done. </changelog> <post> <file name="/etc/motd" mode="append"> Valgrind on a "client". </file> </post> </kickstart> |
And here is the contents of "valgrind-server.xml":
<?xml version="1.0" standalone="no"?> <kickstart> <description> Valgrind server node XML file. This file should be applied to frontends. </description> <copyright> Rocks(r) www.rocksclusters.org version 5.5 (Mamba) version 6.0 (Mamba) Copyright (c) 2000 - 2012 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice unmodified and in its entirety, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising and press materials, printed or electronic, mentioning features or use of this software must display the following acknowledgement: "This product includes software developed by the Rocks(r) Cluster Group at the San Diego Supercomputer Center at the University of California, San Diego and its contributors." 4. Except as permitted for the purposes of acknowledgment in paragraph 3, neither the name or logo of this software nor the names of its authors may be used to endorse or promote products derived from this software without specific prior written permission. The name of the software includes the following terms, and any derivatives thereof: "Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of the associated name, interested parties should contact Technology Transfer & Intellectual Property Services, University of California, San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910, Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. </copyright> <changelog> $Log: internals.sgml,v $ Revision 1.9 2012/05/06 05:48:40 phil Copyright Storm for Mamba Revision 1.8 2011/07/23 02:30:44 phil Viper Copyright Revision 1.7 2011/02/08 21:59:41 bruno edits Revision 1.6 2011/02/07 23:30:26 bruno first pass at build section Revision 1.5 2011/02/07 20:48:46 bruno the first draft of 'roll internals' is done. </changelog> <package>roll-valgrind-usersguide</package> <post> <file name="/etc/motd" mode="append"> Valgrind on a "server". </file> </post> </kickstart> |
Then, to splice them in to the Rocks kickstart graph, we'll modify our graph XML file "valgrind.xml" to look like:
<?xml version="1.0" standalone="no"?>
<graph>
<description>
The valgrind Roll
</description>
<copyright>
Rocks(r)
www.rocksclusters.org
version 5.5 (Mamba)
version 6.0 (Mamba)
Copyright (c) 2000 - 2012 The Regents of the University of California.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice unmodified and in its entirety, this list of conditions and the
following disclaimer in the documentation and/or other materials provided
with the distribution.
3. All advertising and press materials, printed or electronic, mentioning
features or use of this software must display the following acknowledgement:
"This product includes software developed by the Rocks(r)
Cluster Group at the San Diego Supercomputer Center at the
University of California, San Diego and its contributors."
4. Except as permitted for the purposes of acknowledgment in paragraph 3,
neither the name or logo of this software nor the names of its
authors may be used to endorse or promote products derived from this
software without specific prior written permission. The name of the
software includes the following terms, and any derivatives thereof:
"Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of
the associated name, interested parties should contact Technology
Transfer & Intellectual Property Services, University of California,
San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910,
Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
</copyright>
<changelog>
$Log: internals.sgml,v $
Revision 1.9 2012/05/06 05:48:40 phil
Copyright Storm for Mamba
Revision 1.8 2011/07/23 02:30:44 phil
Viper Copyright
Revision 1.7 2011/02/08 21:59:41 bruno
edits
Revision 1.6 2011/02/07 23:30:26 bruno
first pass at build section
Revision 1.5 2011/02/07 20:48:46 bruno
the first draft of 'roll internals' is done.
Revision 1.4 2011/02/05 01:04:49 bruno
checkpoint
</changelog>
<!-- add edges here -->
<edge from="base">
<to>valgrind-base</to>
</edge>
<edge from="server">
<to>valgrind-server</to>
</edge>
<edge from="client">
<to>valgrind-client</to>
</edge>
</graph> |

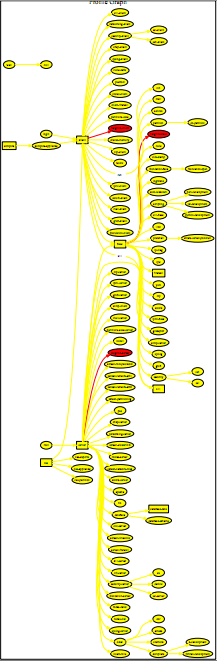

With the above graph XML file, we can see (at a high level) how the Valgrind Roll is spliced in with the Base Roll. the Base Roll node XML files are yellow and the Valgrind Roll node XML files are red.

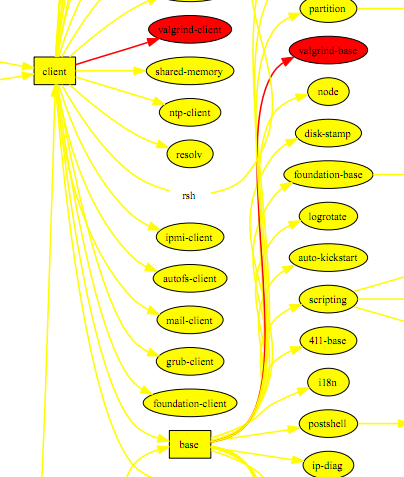

If we zoom in, we can see how two of the Valgrind node XML files have been spliced in:
Now suppose we want the post section of "valgrind-server.xml" to execute
before the post section of "valgrind-base.xml" and we
want the post section of "valgrind-client.xml" to execute
after "valgrind-base.xml".
We can enforce this ordering by adding two
<order> tags:
<?xml version="1.0" standalone="no"?> <graph roll="valgrind"> <description> The valgrind Roll </description> <copyright> Rocks(r) www.rocksclusters.org version 5.5 (Mamba) version 6.0 (Mamba) Copyright (c) 2000 - 2012 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice unmodified and in its entirety, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising and press materials, printed or electronic, mentioning features or use of this software must display the following acknowledgement: "This product includes software developed by the Rocks(r) Cluster Group at the San Diego Supercomputer Center at the University of California, San Diego and its contributors." 4. Except as permitted for the purposes of acknowledgment in paragraph 3, neither the name or logo of this software nor the names of its authors may be used to endorse or promote products derived from this software without specific prior written permission. The name of the software includes the following terms, and any derivatives thereof: "Rocks", "Rocks Clusters", and "Avalanche Installer". For licensing of the associated name, interested parties should contact Technology Transfer & Intellectual Property Services, University of California, San Diego, 9500 Gilman Drive, Mail Code 0910, La Jolla, CA 92093-0910, Ph: (858) 534-5815, FAX: (858) 534-7345, E-MAIL:invent@ucsd.edu THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. </copyright> <changelog> $Log: internals.sgml,v $ Revision 1.9 2012/05/06 05:48:40 phil Copyright Storm for Mamba Revision 1.8 2011/07/23 02:30:44 phil Viper Copyright Revision 1.7 2011/02/08 21:59:41 bruno edits Revision 1.6 2011/02/07 23:30:26 bruno first pass at build section Revision 1.5 2011/02/07 20:48:46 bruno the first draft of 'roll internals' is done. </changelog> <!-- add edges here --> <edge from="base"> <to>valgrind-base</to> </edge> <edge from="server"> <to>valgrind-server</to> </edge> <edge from="client"> <to>valgrind-client</to> </edge> <!-- enforce post section ordering --> <!-- valgrind-server post sections execute before valgrind-base post sections --> <order head="valgrind-server"> <tail>valgrind-base</tail> </order> <!-- valgrind-client post sections execute after valgrind-base post sections --> <order head="valgrind-base"> <tail>valgrind-client</tail> </order> </graph> |
In Rocks, "attributes" are a way to have variables inside node and graph XML files. Attributes are evaluated during kickstart file creation (one of the first actions done when a host is installed). The following is an example of how the "hostname" attribute is used in a post section of a node XML file:
<post>
<!--
set the hostname to the private name.
-->
/bin/hostname &hostname;
</post> |
In node XML files, if you want to use an attribute in a post section, you need to encode it as an XML entity (thus the '&' and ';' characters that bracket the "hostname" attribute).
There are four levels of attributes: global, OS, appliance and host.
Global attributes apply to all hosts in a cluster, OS attributes apply to hosts of a specific OS type (currently "linux" or "sunos"), appliance attributes
apply to hosts that have the same appliance type (e.g., compute, tile, etc.),
and host attributes apply to only one host.
You can add an attribute with one of the following commands:
rocks add attr (global),
rocks add os attr (OS),
rocks add appliance attr (appliance global),
rocks add host attr (host).
To examine which attributes are currently set for a host, execute
rocks list host attr "hostname".
For example:
# rocks list host attr compute-0-0 HOST ATTR VALUE SOURCE compute-0-0: Condor_Client true A compute-0-0: Condor_Daemons MASTER, STARTD G compute-0-0: Condor_EnableMPI no G compute-0-0: Condor_HostAllow + G compute-0-0: Condor_Master brunoland.rocksclusters.org G compute-0-0: Condor_Network private G compute-0-0: Condor_PasswordAuth no G compute-0-0: Condor_PortHigh 50000 G compute-0-0: Condor_PortLow 40000 G compute-0-0: HttpConf /etc/httpd/conf O compute-0-0: HttpConfigDirExt /etc/httpd/conf.d O compute-0-0: HttpRoot /var/www/html O compute-0-0: Info_CertificateCountry US G compute-0-0: Info_CertificateLocality San Diego G compute-0-0: Info_CertificateOrganization SDSC G compute-0-0: Info_CertificateState California G compute-0-0: Info_ClusterContact admin@place.org G compute-0-0: Info_ClusterLatlong N32.87 W117.22 G compute-0-0: Info_ClusterName Brunoland G compute-0-0: Info_ClusterURL http://www.place.org/ G compute-0-0: Kickstart_DistroDir /export/rocks G compute-0-0: Kickstart_Keyboard us G compute-0-0: Kickstart_Lang en_US G compute-0-0: Kickstart_Langsupport en_US G compute-0-0: Kickstart_Multicast 231.253.121.191 G compute-0-0: Kickstart_PrivateAddress 10.1.1.1 G compute-0-0: Kickstart_PrivateBroadcast 10.1.255.255 G compute-0-0: Kickstart_PrivateDNSDomain local G compute-0-0: Kickstart_PrivateDNSServers 10.1.1.1 G compute-0-0: Kickstart_PrivateGateway 10.1.1.1 G compute-0-0: Kickstart_PrivateHostname brunoland G compute-0-0: Kickstart_PrivateKickstartBasedir install G compute-0-0: Kickstart_PrivateKickstartCGI sbin/kickstart.cgi G compute-0-0: Kickstart_PrivateKickstartHost 10.1.1.1 G compute-0-0: Kickstart_PrivateNTPHost 10.1.1.1 G compute-0-0: Kickstart_PrivateNetmask 255.255.0.0 G compute-0-0: Kickstart_PrivateNetmaskCIDR 16 G compute-0-0: Kickstart_PrivateNetwork 10.1.0.0 G compute-0-0: Kickstart_PrivateSyslogHost 10.1.1.1 G compute-0-0: Kickstart_PublicAddress 198.202.88.152 G compute-0-0: Kickstart_PublicBroadcast 198.202.88.255 G compute-0-0: Kickstart_PublicDNSDomain rocksclusters.org G compute-0-0: Kickstart_PublicDNSServers 198.202.75.26 G compute-0-0: Kickstart_PublicGateway 198.202.88.20 G compute-0-0: Kickstart_PublicHostname brunoland.rocksclusters.org G compute-0-0: Kickstart_PublicKickstartHost central.rocksclusters.org G compute-0-0: Kickstart_PublicNTPHost pool.ntp.org G compute-0-0: Kickstart_PublicNetmask 255.255.255.0 G compute-0-0: Kickstart_PublicNetmaskCIDR 24 G compute-0-0: Kickstart_PublicNetwork 198.202.88.0 G compute-0-0: Kickstart_Timezone America/Los_Angeles G compute-0-0: RootDir /root O compute-0-0: Server_Partitioning manual G compute-0-0: Xen_Dom0MinMem 768 G compute-0-0: arch x86_64 H compute-0-0: bio true A compute-0-0: dhcp_filename pxelinux.0 A compute-0-0: dhcp_nextserver 10.1.1.1 A compute-0-0: exec_host true A compute-0-0: ganglia_address 224.0.0.3 G compute-0-0: hostname compute-0-0 I compute-0-0: kickstartable yes A compute-0-0: managed true A compute-0-0: os linux H compute-0-0: rack 0 I compute-0-0: rank 0 I compute-0-0: rocks_version 5.4 G compute-0-0: sge true A compute-0-0: ssh_use_dns true G compute-0-0: submit_host false A compute-0-0: tripwire_mail root@brunoland.rocksclusters.org G compute-0-0: vm_mac_base_addr 9a:58:ca:0:00:00 G compute-0-0: vm_mac_base_addr_mask ff:ff:ff:c0:00:00 G |
In the output above, the letters in the "SOURCE" column indicate the level at which this host got the attribute. 'G' means the attribute is global, 'O' is an OS attribute, 'A' is an appliance attribute, 'H' is a host attribute and 'I' in an intrinsic attribute (these attributes cannot be removed or modified).
If a host has an attribute assigned to it, you can use it in a post section by referring to it in its entity form ("&attribute_name;"). For example, if you'd like to dynamically get the IP address of the private network for the frontend, you'd use "&Kickstart_PrivateAddress;" in a post section.
Attributes can also be used as a "edge conditional" in graph XML files or as a "post section conditional" in node XML files. An edge conditional is used to conditionally traverse an edge in a graph XML file. The following is an excerpt from the Base Roll graph XML file:
<edge from="client" to="x11" cond="x11"/> |
If the "x11" attribute is set to "true", then when a kickstart file is built for a "client" host (e.g., a compute node or tile node), then the kickstart file generation code will traverse the edge from "client" to "x11", that is, the "x11" node XML file will be included in the kickstart file. Otherwise, if the "x11" attribute is set to false, then the "x11" node XML file will not be included in the kickstart file.
Post section conditions are used to conditionally execute post sections. The following is an excerpt from a node XML file from the SGE Roll:
<post os="linux" cond="exec_host"> <file name="/etc/rc.d/rocksconfig.d/post-91-sge" mode="append"> SET_HOST_TYPE=" -x " </file> </post> |
If the attribute "exec_host" is true (and if this is a "linux" host), then the post section will be executed, otherwise, this post section will be skipped.
